PVDF + FRP Tanks & Vessels: Engineered for Demanding Applications
Industrial facilities that handle aggressive chemicals need storage and process equipment that can withstand corrosive environments while maintaining structural reliability.
PVDF + FRP tanks and vessels combine two complementary materials: a chemically resistant PVDF inner layer and a mechanically strong FRP outer structure. This dual-material construction is used where chemical compatibility and structural performance are both important.
For industries such as chemical processing, surface treatment, pharmaceuticals, water treatment, electroplating, and other demanding applications, selecting the correct tank material is critical to equipment life, process safety, and maintenance requirements.
ASK Enterprises / ASK Innocomp offers customized PVDF + FRP tank and vessel solutions designed around application requirements, operating conditions, dimensions, and chemical service.
What Is a PVDF + FRP Tank?
A PVDF + FRP tank is a dual-layer industrial tank that combines a PVDF chemical-contact layer with an FRP structural layer.
PVDF Inner Layer
PVDF, or Polyvinylidene Fluoride, is a high-performance fluoropolymer known for strong chemical resistance and suitability for demanding industrial environments.
The PVDF layer acts as the primary chemical-contact surface.
FRP Outer Layer
FRP, or Fiberglass Reinforced Plastic, provides the structural reinforcement required to maintain the shape and strength of the vessel.
In dual-laminate construction, the thermoplastic liner provides chemical resistance while the FRP layer is designed to provide structural support. This type of construction is used in chemical-process and other demanding industries.
Why Combine PVDF and FRP?
Using only one material may not always provide the desired combination of chemical resistance, mechanical strength, weight, and cost.
The PVDF + FRP combination allows engineers to use:
- PVDF for chemical resistance
- FRP for structural reinforcement
- Customized geometry for the application
- Lightweight composite construction
- Corrosion-resistant equipment for demanding environments
Key Benefits of PVDF + FRP Tanks & Vessels
1. High Chemical Resistance
The PVDF contact layer is designed for applications involving aggressive chemical environments. However, actual suitability depends on the specific chemical, concentration, temperature, exposure time, and operating conditions.
Chemical compatibility should always be confirmed during the engineering stage.
2. Strong Structural Construction
FRP provides the structural reinforcement around the PVDF layer, helping the vessel withstand the mechanical loads associated with its intended service.
3. Corrosion Resistance
Unlike conventional metallic equipment that can be vulnerable to corrosion in aggressive chemical environments, a properly designed PVDF + FRP system provides a non-metallic chemical-contact surface with FRP structural reinforcement.
Industrial tanks are rarely one-size-fits-all.
PVDF + FRP tanks and vessels can be engineered around requirements such as:
- Capacity
- Diameter and height
- Orientation
- Nozzle locations
- Manways
- Drain connections
- Vent connections
- Support arrangements
- Operating temperature
- Chemical service
- Installation conditions
ASK’s PVDF + FRP offering includes customized configurations and different tank geometries according to project requirements.
5. Low Maintenance Potential
A chemically compatible and properly engineered tank can reduce corrosion-related maintenance compared with unsuitable materials.
However, “low maintenance” does not mean “maintenance-free.” Regular inspection of the liner, fittings, connections, supports, and external FRP structure remains important.
6. Lightweight Composite Design
FRP structures can provide a high strength-to-weight advantage compared with many conventional metallic structures, which can simplify handling and installation in suitable applications.
PVDF + FRP Tank Construction
A typical dual-laminate arrangement consists of:
Chemical → PVDF Contact Layer → FRP Reinforcement → External Environment
Each layer has a specific function.
| Layer | Primary Function |
| PVDF | Chemical resistance and chemical-contact surface |
| FRP | Structural reinforcement |
| External finish | Environmental protection and surface durability |
The exact laminate construction should be engineered according to the service conditions rather than selected solely by tank size.
PVDF + FRP vs Conventional Metal Tanks
Choosing between composite and metallic equipment requires consideration of chemical compatibility, temperature, pressure, structural loads, fabrication requirements, maintenance, and total lifecycle cost.
| Feature | PVDF + FRP | Conventional Metal |
| Chemical-contact surface | PVDF | Metal alloy |
| Structural reinforcement | FRP | Metal |
| Corrosion resistance | High when properly specified | Depends strongly on alloy and chemical |
| Weight | Generally lightweight | Often heavier |
| Customization | Highly customizable | Customizable |
| Maintenance | Potentially low with proper design | May require corrosion management |
| Suitable applications | Aggressive chemical/process environments | Depends on material and service |
The right choice should always be based on a chemical compatibility and engineering assessment.
Where Are PVDF + FRP Tanks Used?
PVDF + FRP equipment can be considered for applications where aggressive chemical service and structural performance are important.
Chemical Processing
Chemical plants may require equipment capable of handling corrosive liquids and process chemicals.
Electroplating and Surface Treatment
Surface-treatment facilities use tanks and vessels for processes involving acids, alkalis, cleaning solutions, and other chemicals.
Pharmaceutical Industry
Where chemical compatibility, cleanliness, and process reliability are important, high-performance polymer-lined equipment may be considered.
Water and Wastewater Treatment
Chemical dosing, treatment, and storage applications can involve corrosive chemicals requiring carefully selected materials.
Semiconductor and High-Purity Applications
PVDF is also used in applications where chemical resistance and clean fluid handling are important. PVDF/FRP dual-laminate construction is documented for chemical-process and semiconductor applications.
Chemical Storage and Process Plants
PVDF + FRP tanks can be engineered for customized storage and process requirements involving demanding chemical environments.

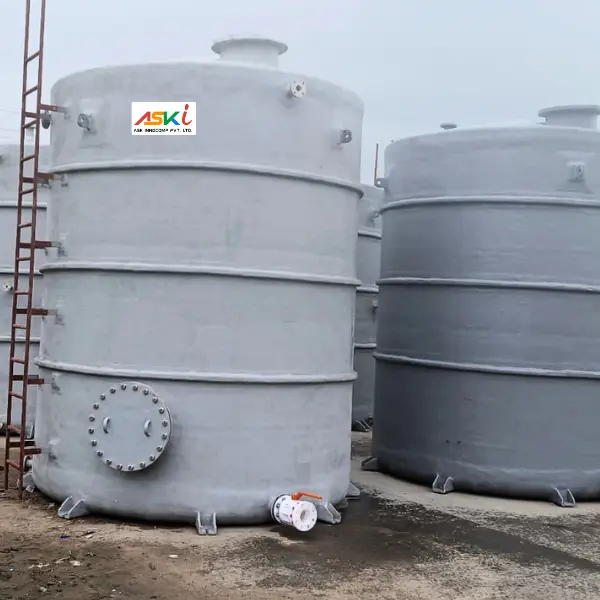

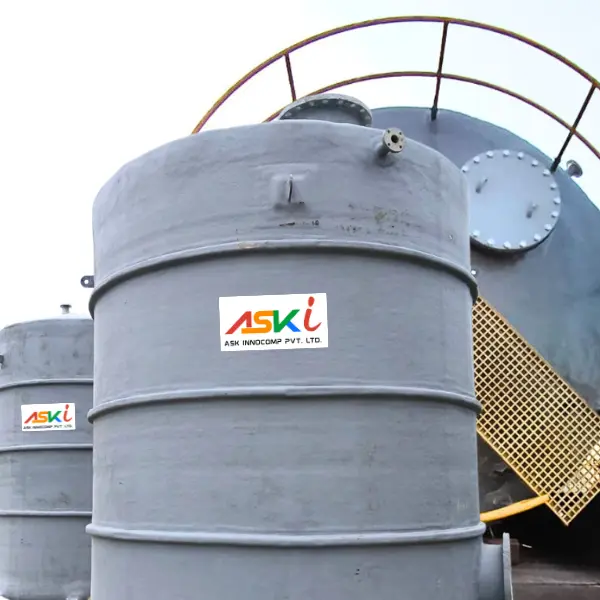

PVDF + FRP Tanks for Chemical Storage
Chemical storage tanks must be selected based on more than capacity.
Before specifying a PVDF + FRP tank, consider:
- Chemical name
- Chemical concentration
- Operating temperature
- Specific gravity
- Storage volume
- Tank orientation
- Atmospheric or pressure service
- Vacuum conditions
- Nozzle requirements
- Installation environment
- Support and foundation
- Required inspection and maintenance access
A tank that is suitable for one chemical may not automatically be suitable for another.
PVDF + FRP Pressure Vessels
PVDF + FRP construction can also be used for specialized vessels where the application requires a chemically resistant inner layer combined with an FRP structural body.
ASK Innocomp describes its PVDF + FRP pressure vessels as using PVDF lining with external FRP reinforcement for applications where chemical resistance and mechanical strength are both critical.
Pressure service requires significantly more detailed engineering than atmospheric storage.
For a pressure vessel, engineers should evaluate:
- Design pressure
- Operating pressure
- Design temperature
- Vacuum conditions
- Fluid density
- Structural loads
- Nozzle loads
- Support loads
- Applicable design standards
- Safety factors
Pressure vessels should never be selected solely from a standard tank specification.
How to Select the Right PVDF + FRP Tank
A good tank selection process begins with the process conditions.
Step 1: Identify the Chemical
Provide the exact chemical name rather than simply describing it as an “acid” or “solvent.”
Step 2: Confirm Concentration
Chemical compatibility can change with concentration.
Step 3: Determine Operating Temperature
Temperature can significantly influence material performance.
Step 4: Calculate Required Capacity
Consider:
- Normal operating volume
- Maximum volume
- Freeboard
- Expansion
- Emergency capacity
Step 5: Determine Tank Geometry
Depending on the installation, the tank may be vertical, horizontal, cylindrical, or another customized configuration.
Step 6: Define Connections
Specify:
- Inlet
- Outlet
- Drain
- Overflow
- Vent
- Manway
- Level indicator
- Sampling connection
- Instrumentation
Step 7: Evaluate Installation Conditions
Consider:
- Foundation
- Wind load
- Seismic conditions
- Access
- Lifting
- Maintenance clearance
- Ambient temperature
Step 8: Confirm Chemical Compatibility
This is one of the most important steps.
The PVDF grade, construction method, temperature, concentration, and exposure conditions should be evaluated for the actual chemical service.
How to Choose the Right Storage and Process Tanks
Although these tanks are designed for demanding applications, preventive maintenance remains important.
Regularly Inspect:
- PVDF liner condition
- Visible cracks or damage
- FRP outer surface
- Nozzles and fittings
- Flanges and gaskets
- Supports
- Tank foundation
- Vent and overflow arrangements
- Signs of leakage
- Discoloration or unusual surface changes
Avoid:
- Mechanical impact
- Unapproved drilling or cutting
- Incompatible cleaning chemicals
- Excessive temperature
- Unauthorized modifications
- Operation beyond design conditions
For detailed maintenance practices, a dedicated FRP Tank Maintenance Guide can be linked from this article.
Common Applications for PVDF + FRP Tanks & Vessels
| Industry | Typical Requirement |
| Chemical | Chemical storage and processing |
| Electroplating | Aggressive process chemicals |
| Metal Treatment | Pickling and surface treatment |
| Pharmaceutical | Chemical and process applications |
| Water Treatment | Chemical storage and treatment |
| Wastewater | Corrosive process liquids |
| Semiconductor | High-performance chemical handling |
| Power & Energy | Specialized chemical/process applications |
Why Choose PVDF + FRP Instead of a Single Material?
The major advantage of dual-laminate construction is material specialization.
Instead of requiring one material to perform every function, the construction assigns different roles:
PVDF = Chemical Protection
FRP = Structural Support
This approach can be particularly useful when the application requires high chemical resistance together with a robust structural design.
Important Factors That Affect Tank Performance
Even high-performance materials require correct engineering.
Tank performance can be affected by:
- Chemical composition
- Chemical concentration
- Temperature
- Pressure
- Vacuum
- Mechanical loading
- UV exposure
- Installation quality
- Foundation conditions
- Tank geometry
- Fabrication quality
- Maintenance practices
Therefore, a PVDF + FRP tank should be designed according to the actual process rather than selected only by storage capacity.
Why Customized PVDF + FRP Solutions Matter
Industrial plants often have unique layouts and operating requirements.
A customized tank can be designed around:
- Existing plant layout
- Available floor space
- Pipeline arrangement
- Required capacity
- Chemical service
- Equipment integration
- Access requirements
- Instrumentation
- Maintenance requirements
ASK Enterprises specializes in customized FRP and thermoplastic-integrated solutions, including PVDF + FRP tanks and vessels.
Frequently Asked Questions (FAQ)
A PVDF + FRP tank is a dual-material tank combining a PVDF chemical-contact layer with an FRP structural reinforcement layer.
What is the main advantage of PVDF + FRP tanks?
The main advantage is the combination of chemical resistance from PVDF and structural strength from FRP.
Are PVDF + FRP tanks suitable for aggressive chemicals?
They can be suitable for many demanding chemical applications, but compatibility must be verified for the exact chemical, concentration, temperature, and operating conditions.
Are PVDF + FRP tanks customizable?
Yes. Tank dimensions, capacity, orientation, nozzles, manways, supports, and other features can be engineered according to project requirements.
What industries use PVDF + FRP tanks?
Applications can include chemical processing, electroplating, surface treatment, water treatment, pharmaceuticals, semiconductor-related processes, and other industrial applications requiring chemical-resistant equipment.
Are PVDF + FRP tanks better than stainless steel tanks?
Not universally. The best material depends on the chemical, concentration, temperature, pressure, mechanical requirements, lifecycle cost, and process conditions.
Can PVDF + FRP be used for pressure vessels?
Yes, specialized PVDF + FRP pressure vessels can be engineered for appropriate pressure applications. Pressure service requires specific engineering and design verification.
How long does a PVDF + FRP tank last?
There is no single universal service-life figure. Actual life depends on chemical exposure, temperature, mechanical loads, fabrication quality, installation, and maintenance.
Do PVDF + FRP tanks require maintenance?
Yes. Regular inspection and preventive maintenance are recommended even when the tank is designed for corrosion resistance and low-maintenance operation.
How do I select the correct PVDF + FRP tank?
Provide the manufacturer with the chemical name, concentration, temperature, capacity, operating pressure, dimensions, installation conditions, and required connections. These parameters allow the tank to be engineered for the actual application.
Conclusion
PVDF + FRP Tanks & Vessels provide a specialized solution for industrial applications where chemical resistance and structural performance are both critical.
By combining a PVDF chemical-contact layer with an FRP structural layer, these systems can offer a practical alternative for demanding chemical storage and process applications when correctly engineered for the service conditions.
The key to long-term performance is not simply choosing PVDF + FRP. The tank must be correctly designed around the chemical, concentration, temperature, capacity, pressure, mechanical loads, installation environment, and applicable engineering requirements.
Looking for a Customized PVDF + FRP Tank or Vessel?
ASK Enterprises / ASK Innocomp provides customized PVDF + FRP tanks and vessels for demanding industrial applications.
Contact the ASK team for your project requirements, chemical compatibility assessment, tank capacity, dimensions, and customized configuration.
