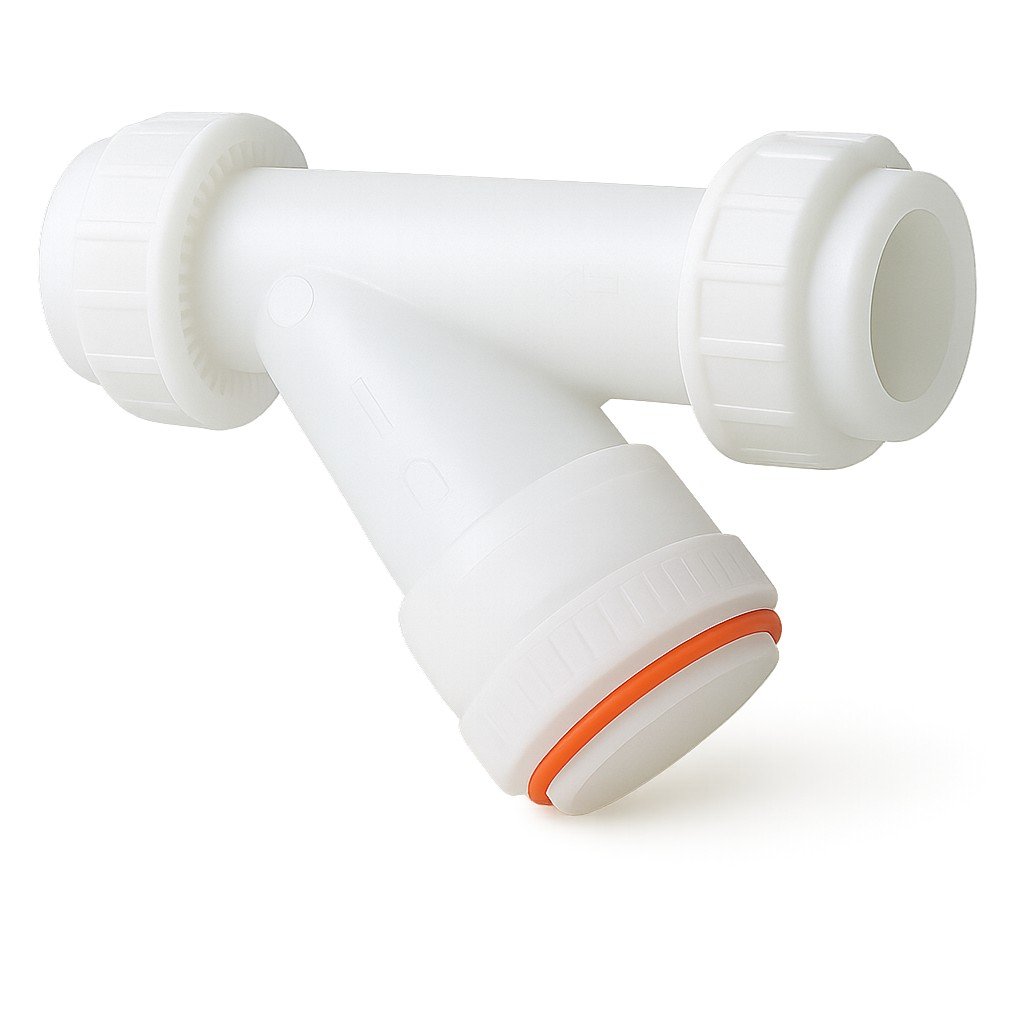

PVDF Y strainer - 100% Virgin Grade PVDF
High-Purity & Corrosion-Resistant Filtration Solution
PVDF Y Strainer is a high-performance thermoplastic filtration device designed to remove solid particles from aggressive chemical and high-purity process lines. Manufactured from premium-grade Polyvinylidene Fluoride (PVDF), this strainer provides outstanding chemical resistance, high temperature stability, and long service life in demanding industrial environments.
The compact Y-type design ensures efficient filtration with minimal pressure drop while occupying less installation space.
At ASK Innocomp, we manufacture and supply precision-engineered PVDF Y Strainers suitable for chemical plants, pharmaceutical facilities, semiconductor industries, and ultra-pure water systems.
Technical Specifications
- Material: Polyvinylidene Fluoride (PVDF)
- Size Range: 20 mm to 250 mm (custom sizes available)
- Pressure Rating: PN6 / PN10 / PN16
- Connection Type: Flanged / Socket / Butt Fusion
- Screen Material: PVDF / SS (as per application)
- Operating Temperature: Up to 140°C
- Filtration Mesh Size: As per process requirement
Technical Specifications & Engineering Parameters
| Parameter | Engineering Specification |
|---|---|
| Available Size Range | 1/2" to 4" (DN15 - DN100) |
| Nominal Pressure Rating | PN16 (232 PSI) |
| Operating Temperature Range | -40°C to +120°C |
| End Connection Standards | True Union Socket / Flanged |
| Body & Wetted Materials | PVDF Perforated Screen with FKM/PTFE O-ring Seal |
| Quality & Testing Protocol | 100% Spark Tested (20kV) & Hydrostatic Proof Tested to 1.5x Design Pressure |
| Design Standards | DIN 8077/78, ISO 10931, ASTM D3222, ASME B16.5, DVS 2205 |
Key Features & Operating Advantages
- Severe Chemical Immunity: High-pressure fluoropolymer Y-strainer designed to filter particulate matter from concentrated acids and ultra-pure liquids.
- Zero Metallic Contamination: Eliminates galvanic corrosion and fluid contamination in pure chemical lines.
- Smooth Anti-Scaling Internal Geometry: Delivers minimum fluid head loss and prevents crystallization of salts.
- Long-Term Thermal & Mechanical Integrity: High creep strength and impact resistance under continuous plant load.
- Ex-Stock Dispatch & Mill Test Certification: Supplied with EN 10204 3.1 batch inspection test certificates.
Recommended Industrial Applications
- Acid Pickling & Galvanizing Lines: Concentrated Hydrochloric Acid (HCl 33%) and Sulfuric Acid (H2SO4) transfer.
- Chemical & Agrochem Manufacturing: Pesticide synthesis, organic acid handling, and raw material dosing skids.
- Electroplating & Surface Finishing: Acid copper, hard chrome, nickel baths, and rinse water piping.
- Water & Wastewater Treatment: Demineralized water (DM) plants, reverse osmosis (RO) loops, and effluent neutralization.
