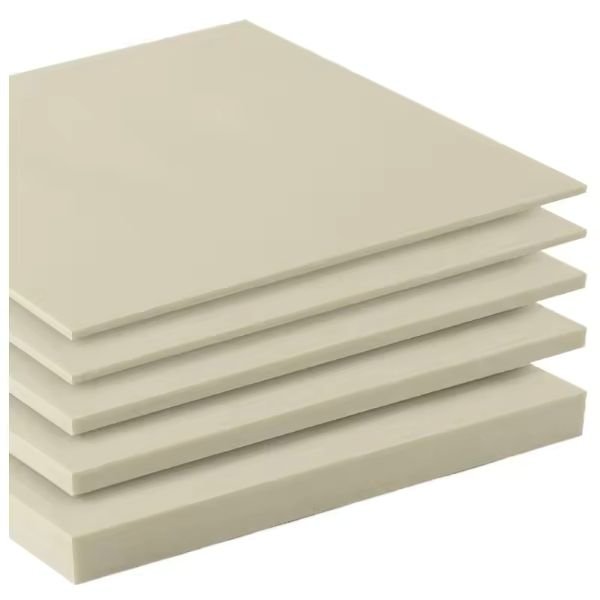

PPH Sheet - 100% Virgin Grade PPH
Durable & Chemical-Resistant Thermoplastic Sheets for Industrial Fabrication
PPH Sheet (Polypropylene Homopolymer Sheet) is a high-performance thermoplastic sheet widely used for fabrication, lining, and industrial applications requiring excellent chemical resistance and mechanical strength. Manufactured from premium-grade Polypropylene Homopolymer (PPH), these sheets provide long service life, easy weldability, and superior corrosion resistance.
At ASK Innocomp, we supply high-quality PPH sheets designed for use in chemical processing plants, water treatment systems, and industrial fabrication projects.
Technical Specifications
- Material: Polypropylene Homopolymer (PPH)
- Thickness Range: 2 mm to 50 mm
- Sheet Size: Standard 1220 mm x 2440 mm
- Color: Grey
- Operating Temperature: Up to 95°C
- Density: Approx. 0.90 g/cm³
Technical Specifications & Engineering Parameters
| Parameter | Engineering Specification |
|---|---|
| Available Size Range | Thickness 2mm to 50mm (Standard 1000x2000mm, 1250x2500mm, 1500x3000mm) |
| Nominal Pressure Rating | Non-Pressurized Structural / Lining Sheet |
| Operating Temperature Range | 0°C to +95°C |
| End Connection Standards | Hot Air & Extrusion Weldable |
| Body & Wetted Materials | 100% Virgin Polypropylene Homopolymer (Grey / Natural) |
| Quality & Testing Protocol | 100% Spark Tested (20kV) & Hydrostatic Proof Tested to 1.5x Design Pressure |
| Design Standards | DIN 8077/78, ISO 10931, ASTM D3222, ASME B16.5, DVS 2205 |
Key Features & Operating Advantages
- Severe Chemical Immunity: High-rigidity thermoplastic sheets for chemical tank fabrication, acid scrubbing hoods, pickling tank liners, and ductwork.
- Zero Metallic Contamination: Eliminates galvanic corrosion and fluid contamination in pure chemical lines.
- Smooth Anti-Scaling Internal Geometry: Delivers minimum fluid head loss and prevents crystallization of salts.
- Long-Term Thermal & Mechanical Integrity: High creep strength and impact resistance under continuous plant load.
- Ex-Stock Dispatch & Mill Test Certification: Supplied with EN 10204 3.1 batch inspection test certificates.
Recommended Industrial Applications
- Acid Pickling & Galvanizing Lines: Concentrated Hydrochloric Acid (HCl 33%) and Sulfuric Acid (H2SO4) transfer.
- Chemical & Agrochem Manufacturing: Pesticide synthesis, organic acid handling, and raw material dosing skids.
- Electroplating & Surface Finishing: Acid copper, hard chrome, nickel baths, and rinse water piping.
- Water & Wastewater Treatment: Demineralized water (DM) plants, reverse osmosis (RO) loops, and effluent neutralization.
