PPH Fittings - 100% Virgin Grade PPH
Reliable & Corrosion-Resistant PPH Pipe Fittings

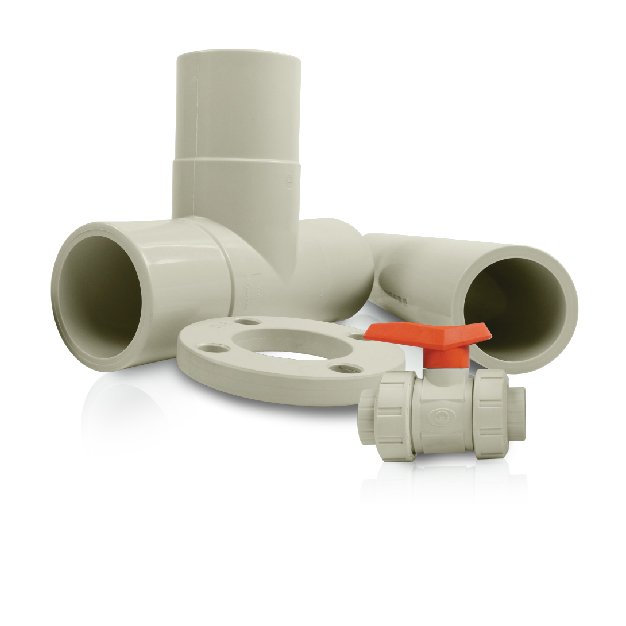

PPH Fittings (Polypropylene Homopolymer Fittings) are engineered to provide strong, leak-proof, and durable connections in thermoplastic piping systems. Designed to work seamlessly with PPH pipes, these fittings offer excellent chemical resistance, high mechanical strength, and long operational life in aggressive industrial environments.
At ASK Innocomp, we supply precision-molded and fabricated PPH fittings suitable for chemical plants, water treatment systems, pharmaceuticals, and various process industries.
We offer a complete range of PPH fittings, including:

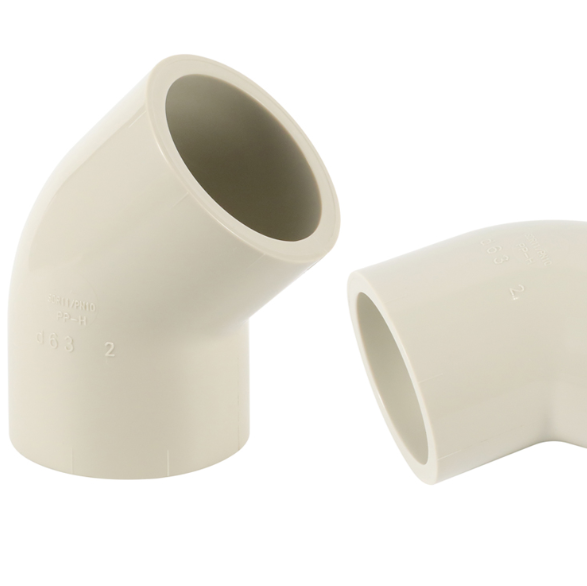

Elbows (45° & 90°)

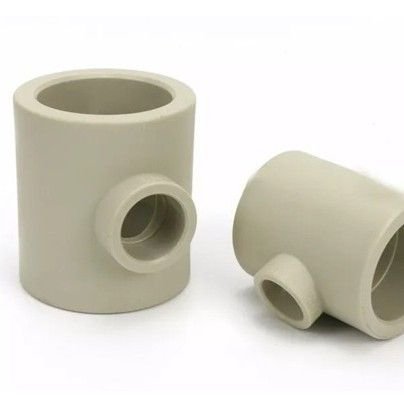

Tees (Equal & Reducing)

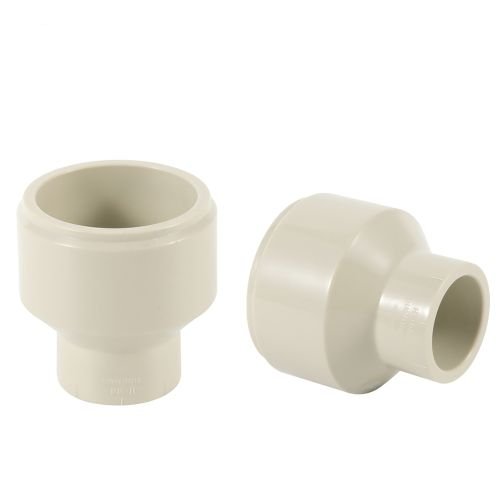

Reducers (Concentric & Eccentric)

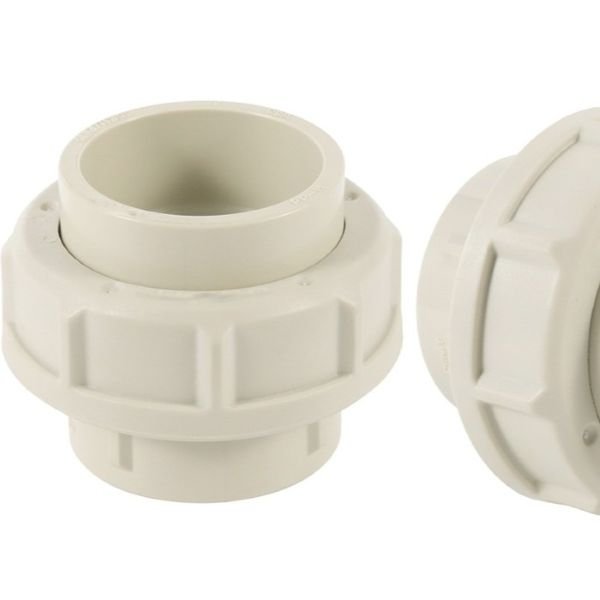

PPH Union

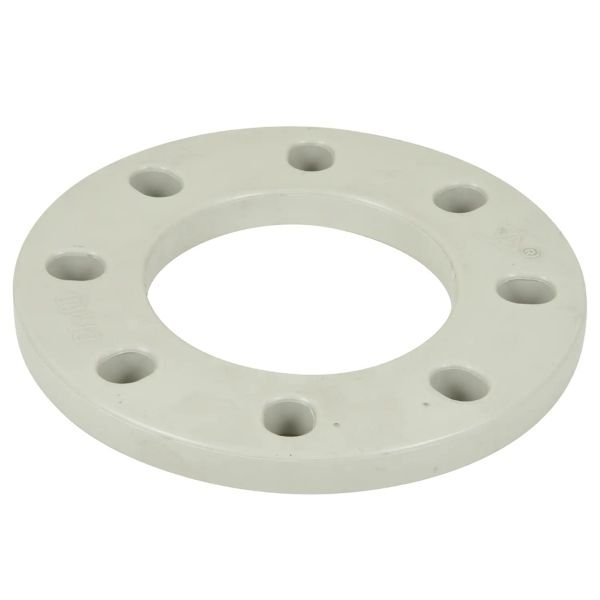

Flanges & Stub Ends
End Caps
Couplers
Technical Specifications & Engineering Parameters
| Parameter | Engineering Specification |
|---|---|
| Available Size Range | 20mm to 315mm OD |
| Nominal Pressure Rating | PN10 / PN16 (SDR 11 & SDR 17.6) |
| Operating Temperature Range | 0°C to +95°C |
| End Connection Standards | Socket Fusion, Butt Fusion, Flanged Stub Ends |
| Body & Wetted Materials | 100% Homogenous Beta-Nucleated PPH |
| Quality & Testing Protocol | 100% Spark Tested (20kV) & Hydrostatic Proof Tested to 1.5x Design Pressure |
| Design Standards | DIN 8077/78, ISO 10931, ASTM D3222, ASME B16.5, DVS 2205 |
Key Features & Operating Advantages
- Severe Chemical Immunity: Comprehensive range of 90°/45° elbows, equal/reducing tees, concentric reducers, end caps, and stub flanges.
- Zero Metallic Contamination: Eliminates galvanic corrosion and fluid contamination in pure chemical lines.
- Smooth Anti-Scaling Internal Geometry: Delivers minimum fluid head loss and prevents crystallization of salts.
- Long-Term Thermal & Mechanical Integrity: High creep strength and impact resistance under continuous plant load.
- Ex-Stock Dispatch & Mill Test Certification: Supplied with EN 10204 3.1 batch inspection test certificates.
Recommended Industrial Applications
- Acid Pickling & Galvanizing Lines: Concentrated Hydrochloric Acid (HCl 33%) and Sulfuric Acid (H2SO4) transfer.
- Chemical & Agrochem Manufacturing: Pesticide synthesis, organic acid handling, and raw material dosing skids.
- Electroplating & Surface Finishing: Acid copper, hard chrome, nickel baths, and rinse water piping.
- Water & Wastewater Treatment: Demineralized water (DM) plants, reverse osmosis (RO) loops, and effluent neutralization.
