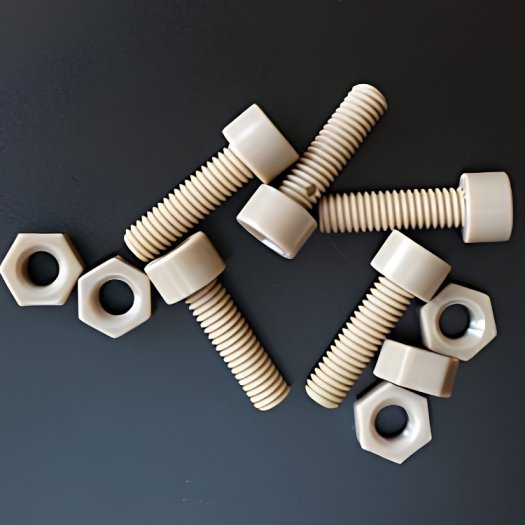

PAEK Fasteners & PEAK Cup Nut

High-Performance Engineering Overview

PAEK Fasteners & PEAK Cup Nut manufactured and supplied by ASK Innocomp Pvt. Ltd. represents the highest standard of thermoplastic and fluoropolymer engineering. Specifically designed to solve the critical vulnerabilities of standard metallic and commercial plastic hardware in corrosive chemical plants, this product delivers exceptional durability, chemical immunity, and extended maintenance-free service life.

Technical Specifications & Engineering Parameters

Parameter	Engineering Specification
Material Formulation	Virgin Polyaryletherketone (PAEK) & Polyetheretherketone (PEEK)
Standard Dimensions	M6 to M30 Metric Coarse/Fine; 1/4" to 1-1/4" UNC Threaded Studs
Bolt / Nut Types	Hex Head Bolts, Full-Thread Studs, Hex Nuts, Lock Nuts, Flat Washers, Protective Cup Nuts
Tensile Strength at Yield	95 - 110 MPa (Comparable to structural mild steel)
Operating Temperature Range	-60°C to +250°C Continuous (+300°C short-term peak)
Dielectric Breakdown Strength	19 kV/mm (100% Non-Conductive / Non-Sparking)
Chemical Resistance	Immune to strong inorganic acids, alkalis, chlorinated solvents, and plating solutions
Manufacturing Standards	DIN 933, DIN 934, DIN 125, ISO 4014, ISO 4032

Key Features & Operating Advantages

• Total Immunity to Galvanic Corrosion: 100% non-metallic thermoplastic structure completely eliminates galvanic rusting and frozen threads in chemical baths.
• Thermal Endurance up to +250°C: Retains mechanical structural strength and torque tension at temperatures where PTFE, PPH, and PVC soften.
• Dielectric Isolation & Non-Magnetic: Prevents stray electrical current leakage and short-circuits in electroplating tanks and battery cell rooms.
• Protective Dome Cup Nut Design: Encapsulates exposed bolt threads to prevent aggressive acid condensation and chemical residue accumulation.
• Cleanroom Purity: Ultra-low outgassing and particle shedding certified for pharmaceutical and semiconductor chemical processing.

Quality Assurance, Testing & Compliance

At ASK Innocomp, quality control is integrated at every manufacturing step:

• High-Voltage Dielectric Spark Testing (20,000V): 100% verification of non-porous fluoropolymer coatings and lining integrity.
• Hydrostatic & Tensile Load Testing: Proof pressure tested to 1.5x working rating with tensile pull verification.
• Laser Dimensional Measurement: Precision tolerance checks ensuring exact interchangeability with standard plant flanges and fittings.
• Mill Test Certificates (EN 10204 3.1): Full raw material batch traceability provided with every dispatch.

Recommended Industrial Applications

• Electroplating, anodizing, and hard chrome plating tank anode/cathode bar mounting
• Pickling plant submerged tank baffles, heating coil supports, and scrubber internal fastenings
• Chlor-Alkali cell room busbar and membrane cell assembly
• Battery manufacturing and semiconductor chemical distribution manifolds
• Offshore, marine, and coastal chemical processing plants
