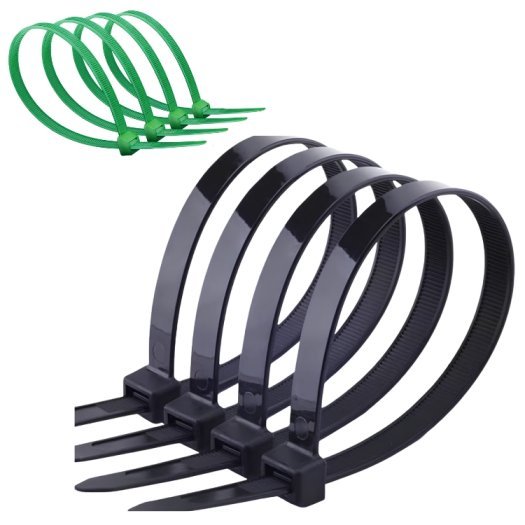

Fume Resistant Cable Tie

High-Performance Engineering Overview

Fume Resistant Cable Tie manufactured and supplied by ASK Innocomp Pvt. Ltd. represents the highest standard of thermoplastic and fluoropolymer engineering. Specifically designed to solve the critical vulnerabilities of standard metallic and commercial plastic hardware in corrosive chemical plants, this product delivers exceptional durability, chemical immunity, and extended maintenance-free service life.

Technical Specifications & Engineering Parameters

Parameter	Engineering Specification
Material Formulation	100% Virgin Ethylene Tetrafluoroethylene (ETFE / Tefzel) or PVDF Fluoropolymer
Tensile Loop Strength	22 kg (50 lbs) to 80 kg (175 lbs) Heavy Duty
Available Lengths	100mm (4"), 150mm (6"), 200mm (8"), 300mm (12"), 380mm (15")
Operating Temperature Range	-60°C to +170°C (ETFE) / -40°C to +140°C (PVDF)
Chemical Resistance	Impervious to Hydrochloric Acid (HCl), Sulfuric Acid (H2SO4), Nitric Acid fumes, and solvents
Flammability Rating	UL 94 V-0 (Self-extinguishing, low smoke generation)
UV & Weathering Life	20+ Years Continuous Outdoor / Chemical Plant Exposure
Radiation Resistance	Gamma Radiation Resistant up to 200 Megarads

Key Features & Operating Advantages

• 100% Resistant to Acid & Chemical Fumes: Standard nylon 6/6 cable ties snap and fail within weeks under acid fumes; our fluoropolymer ties remain intact for decades.
• High Flame Retardancy (UL 94 V-0): Self-extinguishing material with low toxicity and minimal smoke index in industrial fire scenarios.
• Superior Tensile Locking Mechanism: Precision molded locking pawl provides high loop tensile holding strength without slippage.
• Weather, Ozone & Radiation Proof: Ideal for outdoor chemical storage yards, rooftop scrubber exhaust stacks, and nuclear/medical environments.
• Ergonomic Rounded Edges: Protects electrical cable insulation from chafing, cutting, or mechanical fatigue under plant vibration.

Quality Assurance, Testing & Compliance

At ASK Innocomp, quality control is integrated at every manufacturing step:

• High-Voltage Dielectric Spark Testing (20,000V): 100% verification of non-porous fluoropolymer coatings and lining integrity.
• Hydrostatic & Tensile Load Testing: Proof pressure tested to 1.5x working rating with tensile pull verification.
• Laser Dimensional Measurement: Precision tolerance checks ensuring exact interchangeability with standard plant flanges and fittings.
• Mill Test Certificates (EN 10204 3.1): Full raw material batch traceability provided with every dispatch.

Recommended Industrial Applications

• Chemical plant electrical cable trays, conduits, and sensor wire bundling
• Steel pickling lines, galvanizing sheds, and acid storage tank yards
• Pollution control scrubber towers, ductwork, and exhaust fan motor wiring
• Nuclear power plants, radiation facilities, and cleanroom installations
• Marine vessels, offshore chemical platforms, and coastal substations
