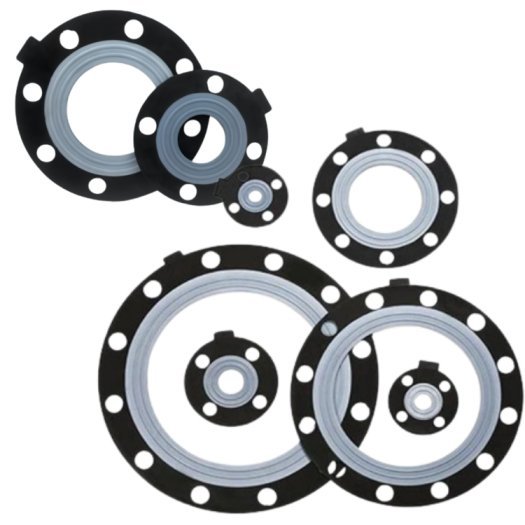

Fluoropolymer Bonded EPDM Gaskets

High-Performance Engineering Overview

Fluoropolymer Bonded EPDM Gaskets manufactured and supplied by ASK Innocomp Pvt. Ltd. represents the highest standard of thermoplastic and fluoropolymer engineering. Specifically designed to solve the critical vulnerabilities of standard metallic and commercial plastic hardware in corrosive chemical plants, this product delivers exceptional durability, chemical immunity, and extended maintenance-free service life.

Technical Specifications & Engineering Parameters

Parameter	Engineering Specification
Core Elastic Substrate	High-Resilience Peroxide-Cured EPDM Elastomer
Wetted Barrier Lining	100% Pure Virgin PTFE (Bonded Envelope or Machined Full-Face Shield)
Standard Dimensions	1/2" to 24" (DN15 to DN600) Full-Face (FF) and Ring (IBC) Types
Flange Standards	ASME B16.5 Class 150, DIN EN 1514-1 (PN10 / PN16), JIS 10K, BS 4504
Working Pressure Rating	Up to 16 Bar (232 PSI)
Operating Temperature Range	-30°C to +130°C
Seating Torque Requirement	Up to 60% Lower Bolt Torque than solid virgin PTFE gaskets
Fugitive Emission Compliance	TA-Luft VDI 2440 / EN 13555 Certified Low-Leakage Sealing

Key Features & Operating Advantages

• Low Seating Stress for Plastic/FRP Flanges: Eliminates flange cracking or bowing on thermoplastic and fiberglass pipe flanges caused by excessive bolt torque.
• Universal Chemical Wetted Surface: Chemically inert PTFE wetted face is impervious to 99% of corrosive acids, alkalis, and solvents.
• High Elastic Recovery (Memory): EPDM core absorbs thermal cycling, pipeline expansion, and pressure pulsations without losing sealing stress.
• Dual Concentric Sealing Ridges: Features molded concentric sealing convex rings for bubble-tight seal at low bolt compression.
• Reusable & Long Lifespan: Prevents gasket adhesion and sticking to flange faces during line maintenance.

Quality Assurance, Testing & Compliance

At ASK Innocomp, quality control is integrated at every manufacturing step:

• High-Voltage Dielectric Spark Testing (20,000V): 100% verification of non-porous fluoropolymer coatings and lining integrity.
• Hydrostatic & Tensile Load Testing: Proof pressure tested to 1.5x working rating with tensile pull verification.
• Laser Dimensional Measurement: Precision tolerance checks ensuring exact interchangeability with standard plant flanges and fittings.
• Mill Test Certificates (EN 10204 3.1): Full raw material batch traceability provided with every dispatch.

Recommended Industrial Applications

• FRP, PPH, PVDF, HDPE, and PVC flanged piping connections
• Chemical storage tank nozzle flanges and decanting valve manifolds
• Water treatment demineralization skids and RO header flanges
• Acid pickling recirculation piping and scrubber inlet/outlet duct flanges
• Glass-lined steel and dual-laminate composite equipment
