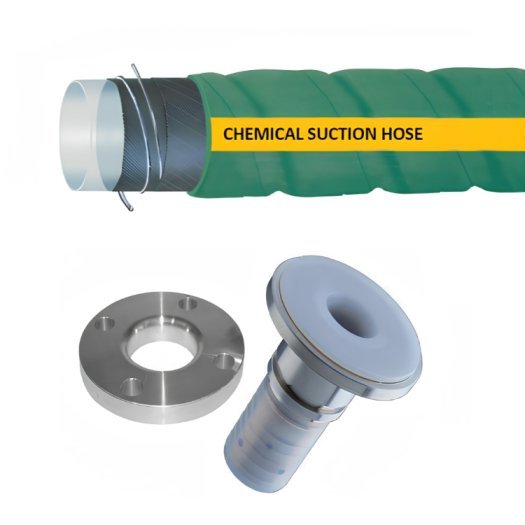

Chemical Suction & Discharge Hose
Engineered and supplied by ASK Innocomp for extreme corrosion environments, high mechanical stress, and aggressive acid containment.
High-Performance Engineering Overview
Chemical Suction & Discharge Hose manufactured and supplied by ASK Innocomp Pvt. Ltd. represents the highest standard of thermoplastic and fluoropolymer engineering. Specifically designed to solve the critical vulnerabilities of standard metallic and commercial plastic hardware in corrosive chemical plants, this product delivers exceptional durability, chemical immunity, and extended maintenance-free service life.
Technical Specifications & Engineering Parameters
| Parameter | Engineering Specification |
|---|---|
| Internal Liner Material | Ultra-High Molecular Weight Polyethylene (UHMWPE) / Seamless PTFE / FEP |
| Reinforcement Structure | High-Tensile Synthetic Textile Plies with Dual Embedded Steel Helix Wire |
| Outer Cover Material | Corrosion, Ozone, UV & Abrasion Resistant EPDM Rubber (Corrugated / Smooth) |
| Nominal Diameter (ID) | 1" (25mm) to 4" (100mm) Standard (Custom sizes up to 8") |
| Working Pressure Rating | 16 Bar (232 PSI) with 4:1 Safety Factor (Burst Pressure 64 Bar) |
| Vacuum Rating | Full Vacuum (0.9 Bar / 90% Vacuum capability) |
| Operating Temperature | -35°C to +100°C (UHMWPE Liner) / -40°C to +150°C (PTFE Liner) |
| End Fittings Available | Swaged Stainless Steel / PPH / PVDF Camlock Couplers, Flanged (ANSI 150#) |
Key Features & Operating Advantages
- Handles 98% of All Industrial Chemicals: Smooth chemical liner resists concentrated sulfuric, nitric, hydrochloric, phosphoric, and organic solvent liquids.
- Crush & Kink Resistant: Dual high-tensile steel wire helix prevents hose collapse during high-vacuum pump suction and tanker offloading.
- Built-In Static Dissipation: Embedded dual anti-static copper wires safely discharge static electricity during solvent and flammable chemical transfers.
- Superior Flexibility & Bend Radius: Engineered for tight turns without bore constriction or internal liner delamination.
- Certified Testing: 100% hydrostatically proof tested at 1.5x working pressure with electrical continuity verification.
Quality Assurance, Testing & Compliance
At ASK Innocomp, quality control is integrated at every manufacturing step:
- High-Voltage Dielectric Spark Testing (20,000V): 100% verification of non-porous fluoropolymer coatings and lining integrity.
- Hydrostatic & Tensile Load Testing: Proof pressure tested to 1.5x working rating with tensile pull verification.
- Laser Dimensional Measurement: Precision tolerance checks ensuring exact interchangeability with standard plant flanges and fittings.
- Mill Test Certificates (EN 10204 3.1): Full raw material batch traceability provided with every dispatch.
Recommended Industrial Applications
- Road tanker loading and offloading of bulk acids, alkalis, and solvents
- In-plant chemical pumping skids and mobile transfer stations
- Flexible vessel and storage tank interconnecting headers
- Wastewater neutralization chemical dosing lines
- Marine dock and barge chemical transfer operations
Need Sizing Support or Immediate Dispatch?
Contact our hardware engineering desk for ex-stock availability, customized dimensional drawings, and direct factory pricing.
